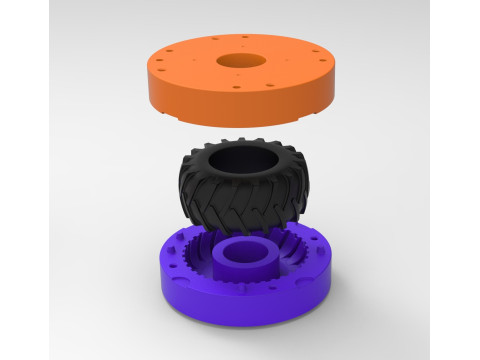

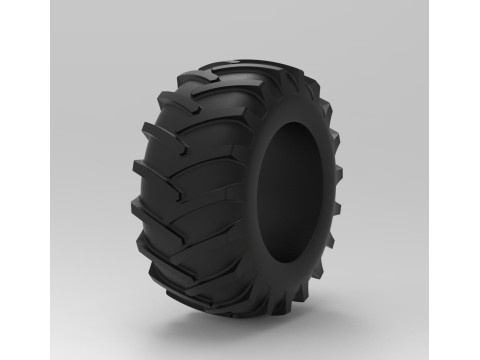

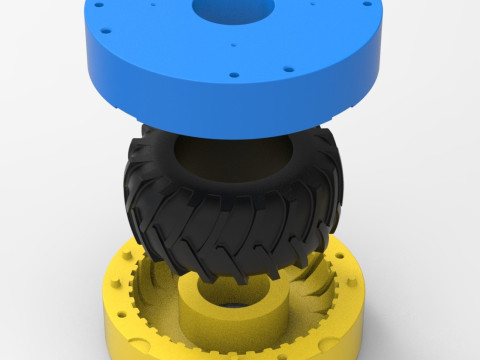

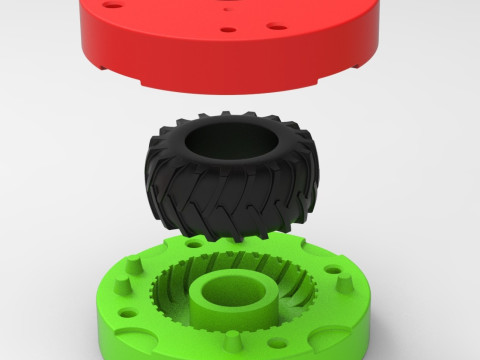

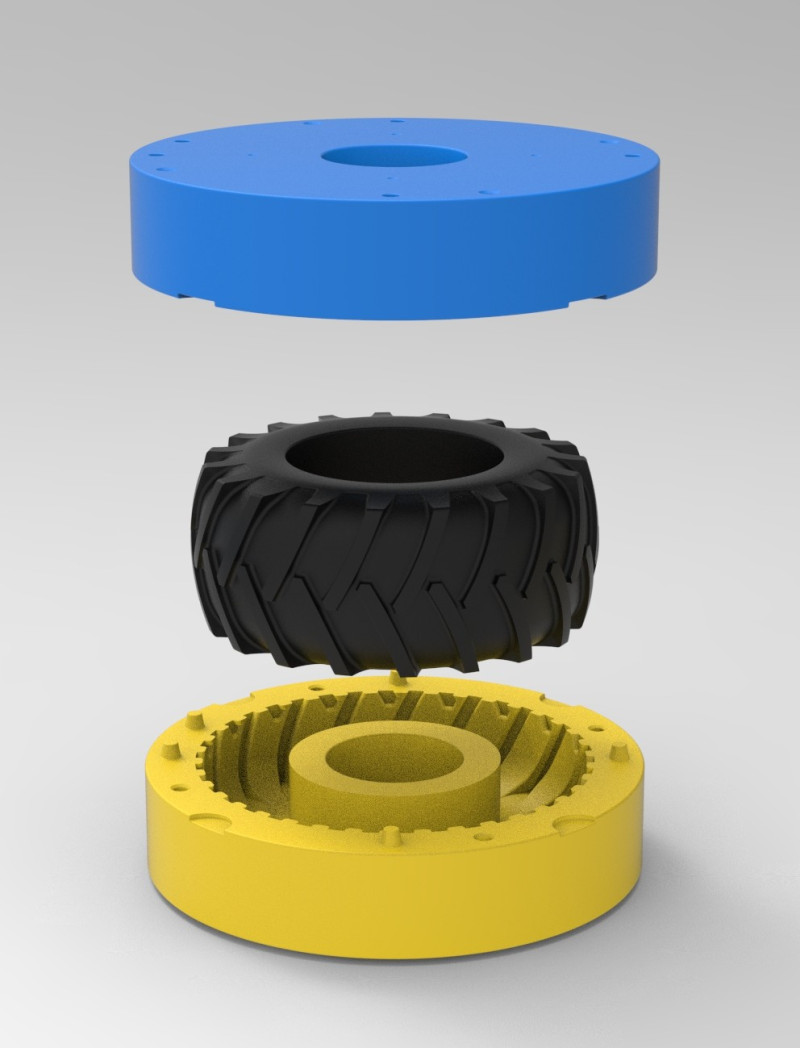

The mold is intended for the tire manufacture from silicone or similar flexible material in scale 1:10, 1:14, 1:25. It consists of 2 parts: top and bottom part. Each part can be 3D printed without supports.
Mold dimensions 1:10:
- diameter – 200 mm
- height – 85 mm
Tire dimensions 1:10:
- outer diameter – 160 mm
- overall width – 70 mm
- inner diameter – 85 mm
Mold dimensions 1:14:
- diameter – 155 mm
- height – 60 mm
Tire dimensions 1:14:
- outer diameter – 115 mm
- overall width – 50 mm
- inner diameter – 60,75 mm
Mold dimensions 1:25:
- diameter – 104 mm
- height – 38 mm
Tire dimensions 1:25:
- outer diameter – 64 mm
- overall width – 28 mm
- inner diameter – 34 mm
If you want a different wheel size, simply scale the mold.

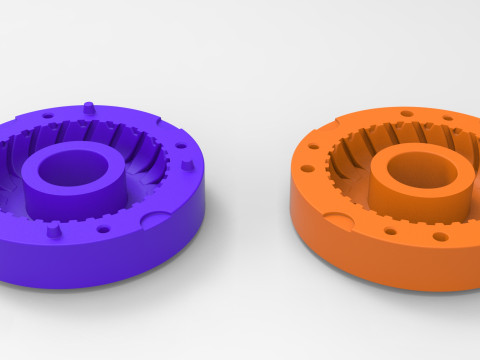

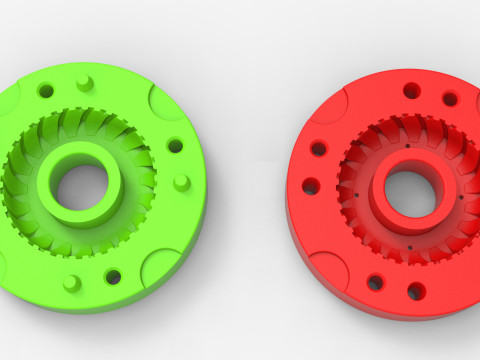

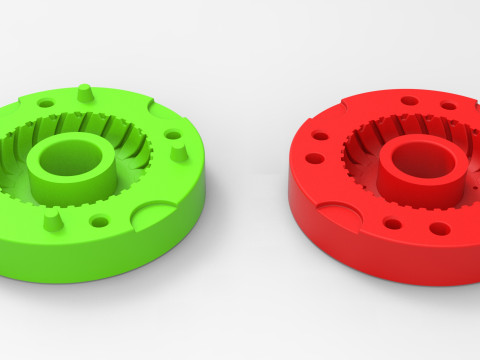

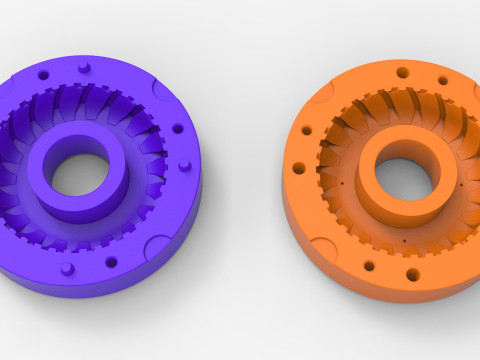

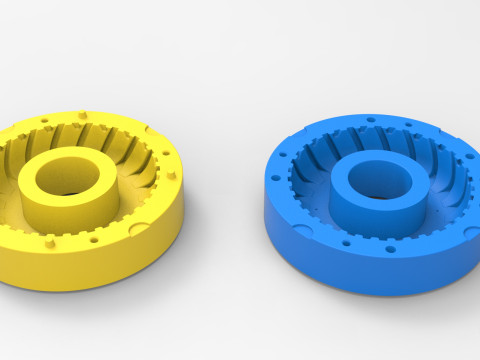

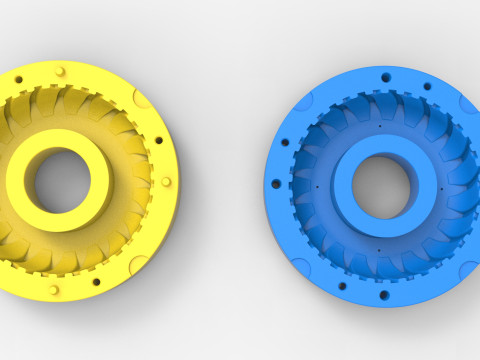

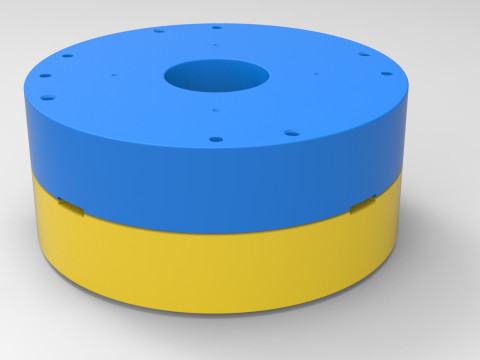

The bottom mold part has 5 special bosses and Top mold part has 5 special holes to guide mold parts in the closed state. Also, there are 4 slots for better opening with a screwdriver or similar instrument.
In the Top mold part are 4 small holes for material injection.
Both mold parts have 4 holes with diameter 6 mm for bolting it in closed state.

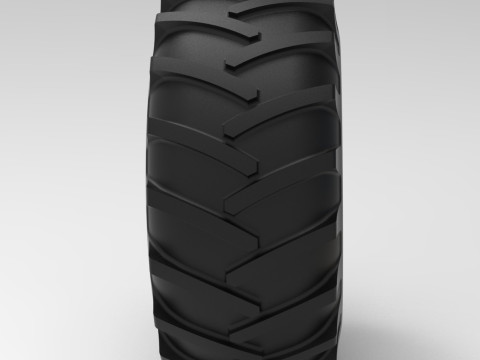

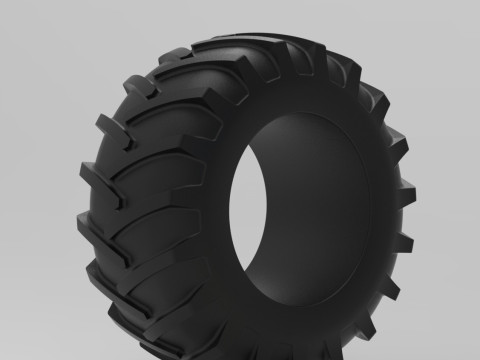

Note! Only the mold! This is not a tire!
