car connectors dj70 Modello 3D

END SPRING SALE 50% OFF
expires on May 24th, 2025
$20.00 -50%
$10.00
4 DAYS SALE
Licenza:
car connectors dj70 Modello 3D
$20.00 -50%
$ 10.00
Rimuovi Segnalibro Segnala questo Oggetto
  • Animato:
    No
  • Textured:
    No
  • Rigged:
    No
  • Materiali:
    Yes
  • Low-poly:
    No
  • Collezione:
    Yes
  • Mapping UVW:
    No
  • Plugins Utilizzati:
    No
  • Stampa Pronta:
    No
  • 3D Scan:
    No
  • Per adulti:
    No
  • PBR:
    No
  • Geometria:
    Poly NURBS
  • UVs Aperti:
    Unknown
  • Visualizzazioni:
    3436
  • Data:
  • ID Oggetto:
    380960
  • Voto:
Effettua un report di questo oggetto

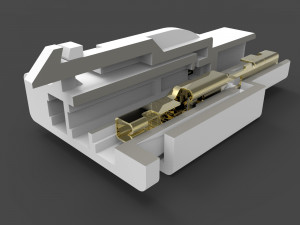

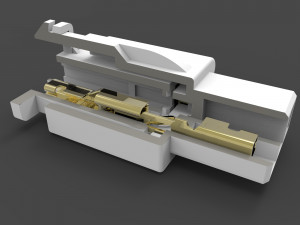

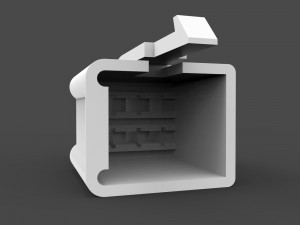

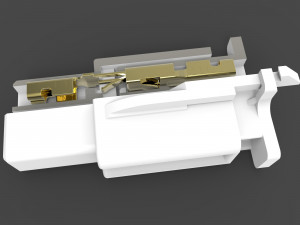

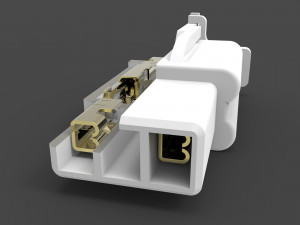

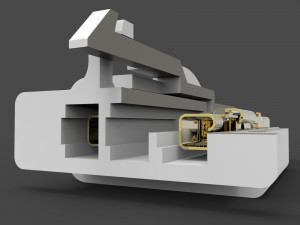

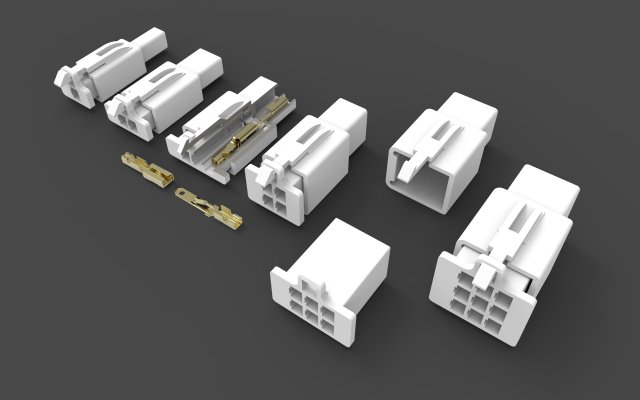

this is a set of models of popular dj70 series car connectors with 2.8 mm terminals.
these models are designed specifically for their layout in 3d assemblies of the designed devices using these connectors.
but they can also be used for any other tasks.

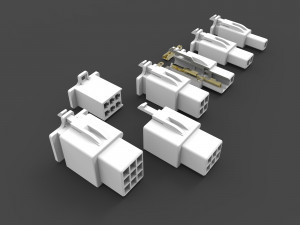

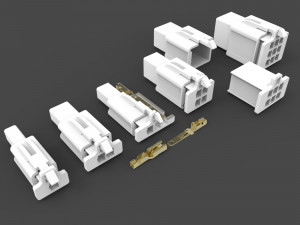

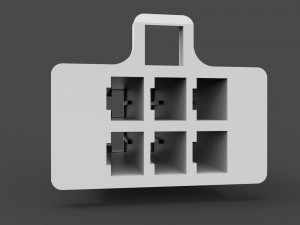

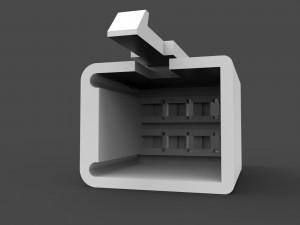

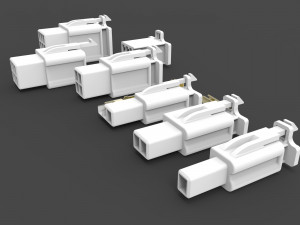

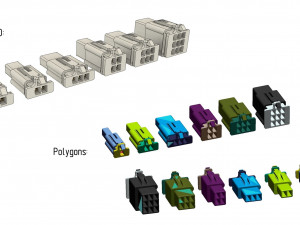

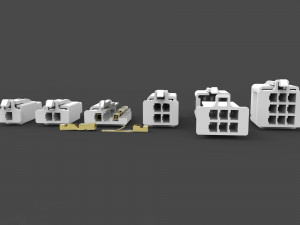

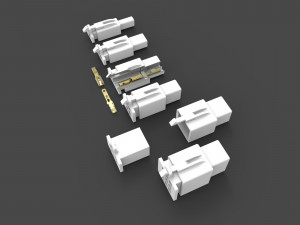

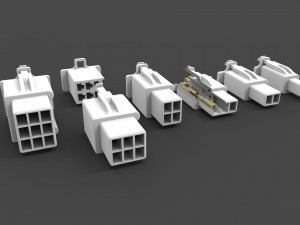

the set includes models of 6 different variants of connectors in this series, depending on the number of terminals in one connector.

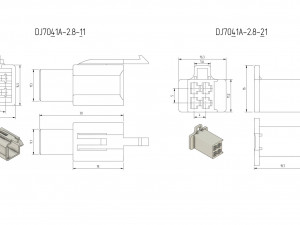

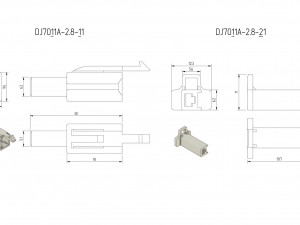

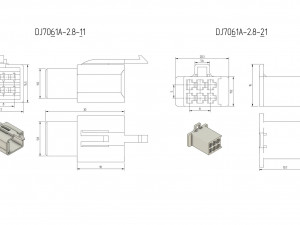

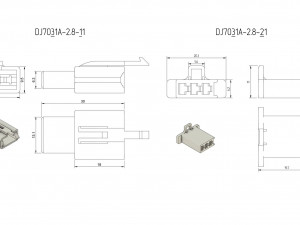

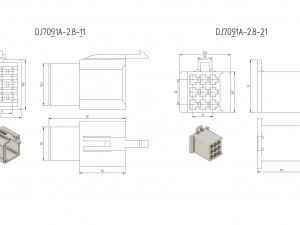

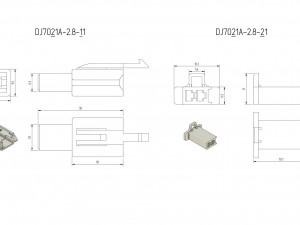

the models are made with high accuracy on a scale of 1:1. the overall dimensions of the connectors and terminals are indicated in the drawings.

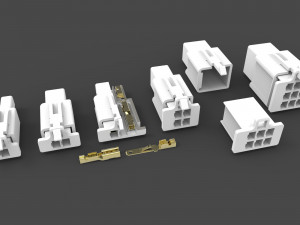

the file includes all 6 connector options with full terminal sets.

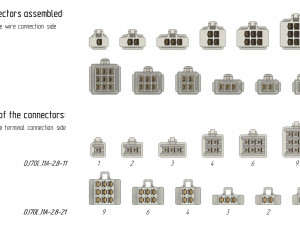

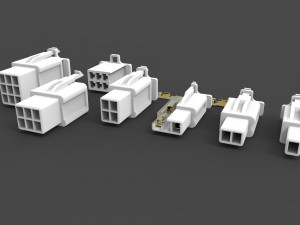

below is a list of all variants of connectors and terminals with designations:
connector 1-pin "dj7011a-2.8-11/21"
connector 2-pin "dj7021a-2.8-11/21"
connector 3-pin "dj7031a-2.8-11/21"
connector 4-pin "dj7041a-2.8-11/21"

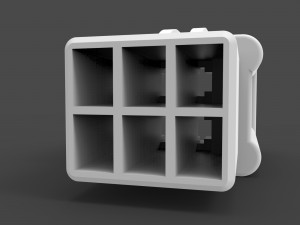

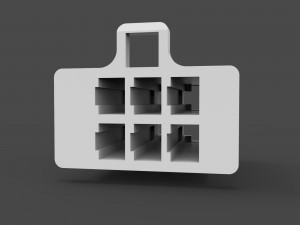

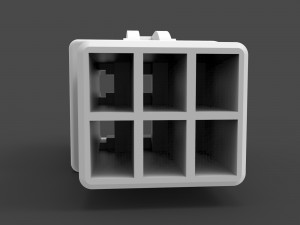

connector 6-pin "dj7061a-2.8-11/21"
connector 9-pin "dj7091a-2.8-11/21"

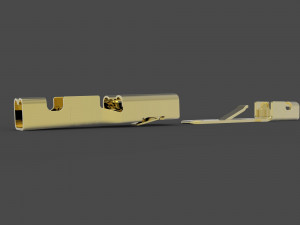

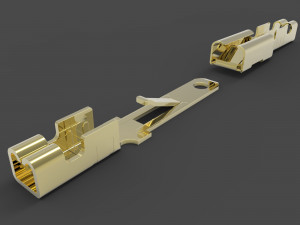

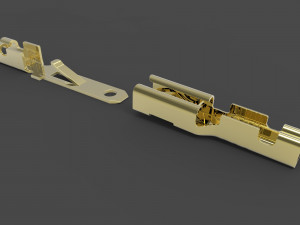

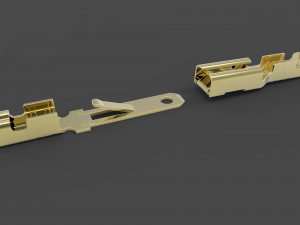

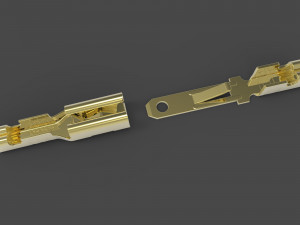

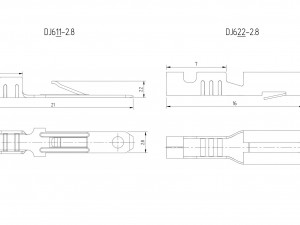

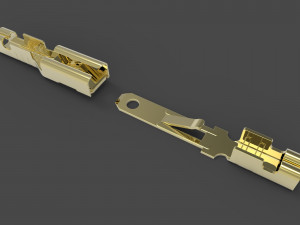

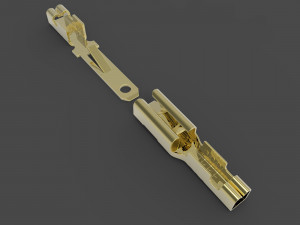

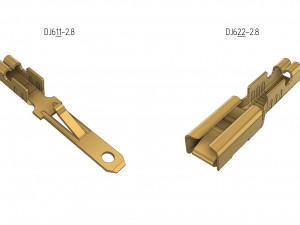

terminal (male) "dj611-2.8"
terminal (female) "dj622-2.8" Stampa Pronta: No
Hai bisogno di ulteriori formati?
Se hai bisogno di diversi formati, aprire un nuovo Ticket i Supporto e una richiesta per questo. Convertiamo modelli 3D a: .stl, .c4d, .obj, .fbx, .ma/.mb, .3ds, .3dm, .dxf/.dwg, .max. .blend, .skp, .glb. Non convertiamo scene 3d e formati come .step, .iges, .stp, .sldprt.!

Scaricato car connectors dj70 Modello 3D step Da Kamenskiy3D

device pin socket gadget electrical electronic automotive layout plug auto connector terminal popular accurate correct wiring design car electric widespread
